Gold mirrors

Gold mirror for the NIR-FIR

Gold mirrors

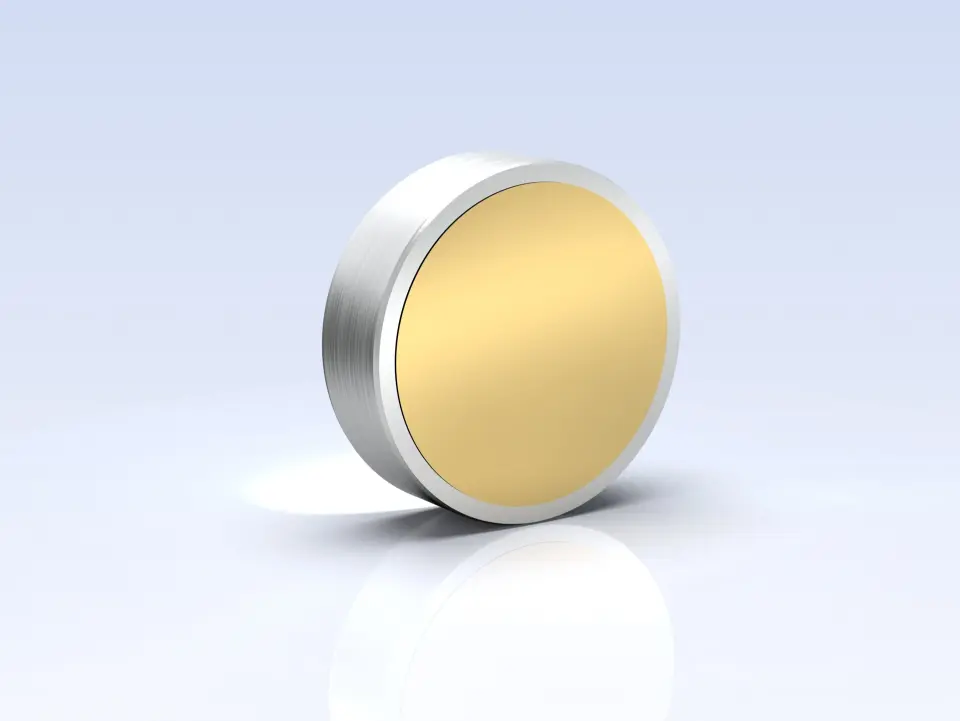

Gold mirror

Gold mirrors are preferably used in the infrared spectral range. We recommend using these from a wavelength of 700 nm. As gold is a precious metal, it does not tarnish and can therefore be used without a protective coating. In addition to the advantages of gold as a coating material, its low hardness and tendency to scratch easily pose challenges. Here it is advisable to apply an additional protective layer to the gold coating. This increases the long-term stability and protects against mechanical stress without impairing the properties of the optical system. Modern coating technologies enable the application of such protective layers (dielectric coatings), which ensure the longevity of gold-coated optics under various operating conditions and additionally increase their performance (reflectivity). We manufacture gold mirrors from:

Quartz, Zerodur, sapphire
Silicon

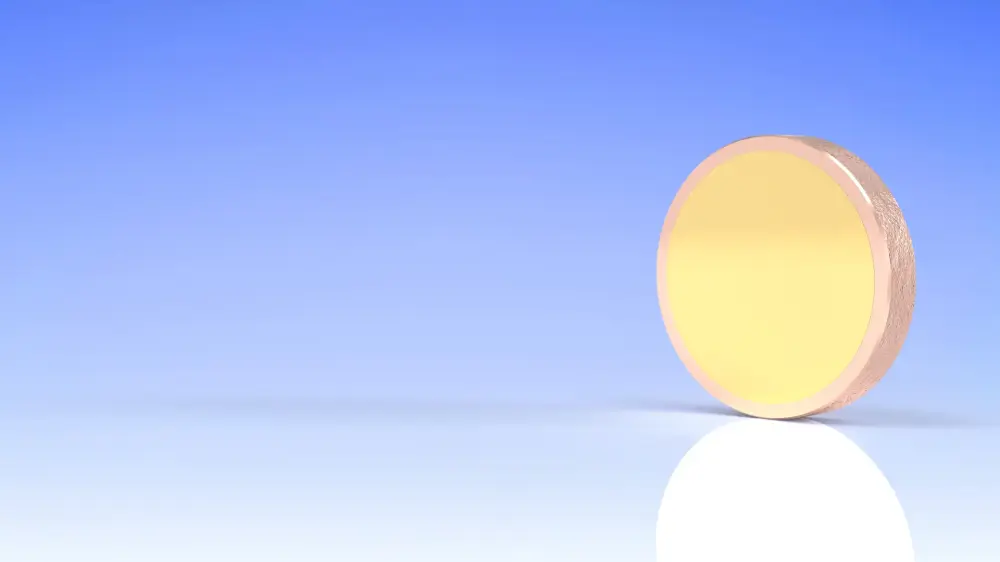

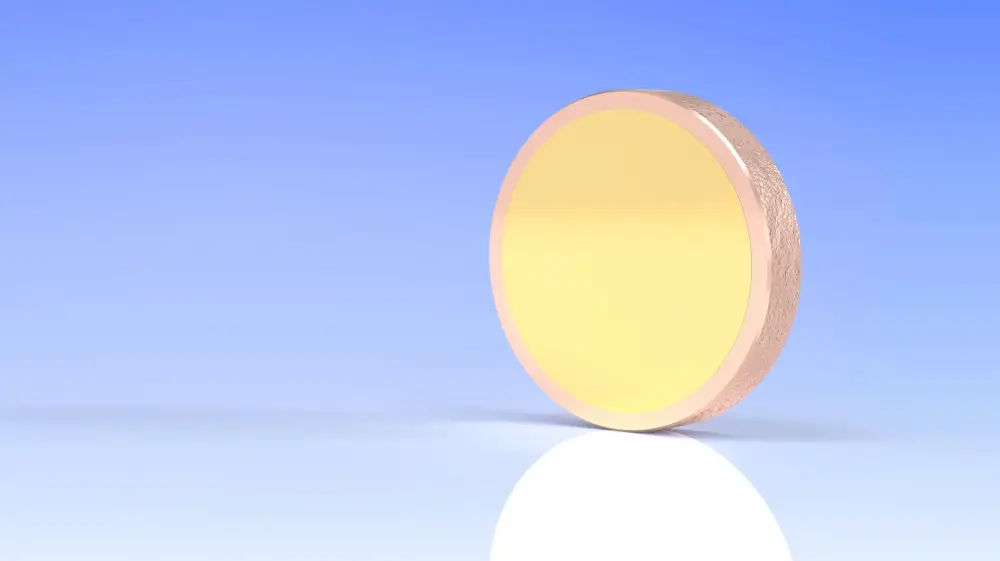

OFHC Copper
Aluminum

Gold mirrors for the infrared spectrum

Gold mirrors, also known as gold-coated mirrors, are a highly sophisticated and powerful type of mirror that offer several unique advantages and special features. These mirrors are produced by applying a thin layer of gold to a substrate, usually quartz or metal. The main advantages:

Infrared Reflectivity

Excellent reflectivity in the infrared spectrum (IR)

Chemical Resistance

High chemical resistance, especially to acids and corrosive environments

Long-Term Durability

Outstanding durability and longevity, with minimal deterioration over time

Low Light Absorption

Low absorption of incident light, which reduces heat generation

Harsh Environment Suitability

Ideal for use in harsh environments, e.g. in aerospace or industrial applications

Substrate Versatility

Compatibility with a wide range of substrates, including glass, ceramics and metals

Oxidation Resistance

Oxidation resistance, maintenance of performance in oxygen-rich environments

Gold mirrors in measurement technology

Gold mirrors are used in a variety of areas due to their unique properties. Below you will find a list of the most important areas in which gold mirrors are frequently used:
